DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

Certification
Good quality Butterfly valve for sales
I'm Online Chat Now

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

China DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier
DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator supplier

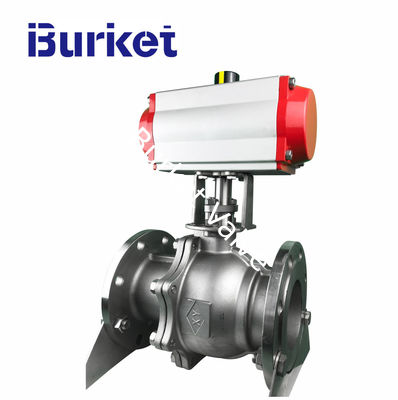

Large Image :  DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

Product Details:

Place of Origin: China
Brand Name: XinYi
Certification: ISO9001
Model Number: DN15-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD45-330/SET
Packaging Details: Wooden Box
Delivery Time: Within 1-3 days after receiving your payment
Payment Terms: T/T
Supply Ability: 10000/SET/YEAR
Contact Now
Detailed Product Description
Nominal Pressure: 1.6Mpa Temperature Range: -50~-250C
Connection Method: Flange Actuating Modes: Electric.pneumatic.manual(lock Available)
Materials: SUS316, ,304 Accessories: Locator, .solenoid Valve Limit Switch
Applicable Mediums: Water, Steam, Gas Structure: Ball

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

Applications:

Pneumatic actuator ball valve are greatly used in

Beer& Drink Filling Machinery
Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal

Pneumatic actuator:
Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
Pre-compressed load springs are convenient for safe mounting and disassemble operations.
Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.

Product Overviews

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

Pneumatic Actuator

.jpg

SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close

.jpg

DOUBLE ACTING ACTUATOR
Air to Open, Air to Close

Advantages:

  • MOQ: 1 set
  • 19 years of valve manufacturing experience
  • Strong inventory, part of commission returned for bulk delay
  • Product quality will be guaranteed for 1 year (12 Months)
  • OEM service to help customers to promote their brands
  • Offer various international standard, ANSI, JIS, DIN, etc
  • Custom complaints handed by one stop professional service.
  • Inquiry will be replied within 8 hours
Size Range 1/2"~8", DN15~200
Acting Mode Double Acting, Spring Return (Single Acting)
Operating Pressure 1.6MPa
Air Supply Pressure 2.5 to 8 bar
Lifespan 1,000,000 (1 Million) Times
Angle of Rotation 90° ±4°
Body Material SS304, SS316, SS316L
Sealing Material PTFE: -30°C~180°C, PPL: -30°C~250°C
Number of Ways 2 Way
End Connection Flanged
Applicable Media Control of Water, Air, Gas, Oil, Liquid
Optional Actuation Handlever, Electric Actuated, or Pneumatic Actuated
Optional Accessories Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper



Workshop

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator


FAQ



Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.



Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.



Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.



Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.



Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator
