Product Details:
Payment & Shipping Terms:
|
Nominal Pressure: | Low Pressure | Temperature Range: | -50~-250C |
---|---|---|---|
Connection Method: | Flange | Actuating Modes: | Electric.pneumatic.manual(lock Available) |
Materials: | SUS316, ,304 | Accessories: | Locator, .solenoid Valve Limit Switch |
Applicable Mediums: | Water, Steam, Gas | Structure: | Ball |
Sealing Material: | PTFE | Port Size: | 1/2"~8", DN15~DN200 |
Type: | BALL VALVES, Flanged Ball Valve | Application: | General |
HS CODE: | 8481804090 | Warranty: | 12 Months |
Type Of Port: | Full Port/Reduce Port |

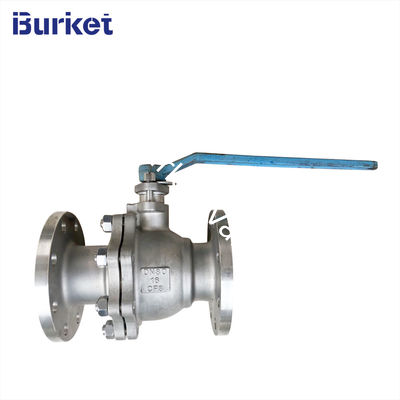

XYMFB Manual Stainless Steel ANSI Class150 2 Way flange 1/4-4 Inch Ball Valve
Function Description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Application:
Applicable Temperature: -20ºC ~ 150 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN16-PN125, 150LB-6000LB
Size Range: 1/2" ~ 12"(DN15-DN300)
Main Material:
ITEM | PART | MATERIAL | ||
1 | Body | CF8M/CF3M | CF8/CF3 | WCB |
2 | Ball Seat | PTFE/RPTFE/PPL | ||
3 | Ball | 316 | 304 | 201 |
4 | Body Gasket | PTFE | ||
5 | Cap | CF8M/CF3M | CF8/CF3 | WCB |
6 | Stem | 316 | 304 | 201 |
7 | Thrust Washer | PTFE | ||
8 | Stem Packing | PTFE | ||
9 | Gland Nut | 304 | ||
10 | Handle | 201/WCB | ||
11 | Spring Washer | 304 | ||
12 | Nut | 304 | ||
13 | Handle Cover | Plastic |
Advantages:
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
A: We are factory.
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
