|Operating Power:||Standard Types:AC230V 50/60HZ||Special Types:||AC110V 24V|
|Connection Method:||Flange||Actuating Modes:||P、 PI、 PID.driven By Servo Motor Also Can Operated By 0/4-20mA0/2-10VDC|
|Material:||SUS316, ，304||Accessories:||Locator, .solenoid Valve Limit Switch|
|Applicable Mediums:||Applicable Mediumall Kinds Of Mediums Which Contain No Obvious Particles||Temperature Range:||-30~-350~C|
|Pressure(Mpa):||PN16||Sealing Types:||Bellows Seal Type Plus Safety Gland Plus Graphite-contained PTFE Sealing|
|Torque Of The Actuator:||2000N、4000N、9000N、10000N||Materials Of Valve Seat Ring/disc:||1.SUS316L Hard Alloy 2.PTFE Containing Graphite|
The Valve offers numerous benefits over other control valves including long life stem seals proven millions of times over, flexible changeable trims offering multiple Kvs values per body size, precise and durable operation (even at high differential pressures) thanks to the vibration reducing shaft guiding, easy handling, the small footprint, rotatable upper part and reduced weight when compared with other control valves.
Suitable for non-critical complex control tasks uses in applications such as industrial complexes, plant construction and process technology installations for mediums such as cooling water, cooling brine, warm water, hot water and steam.

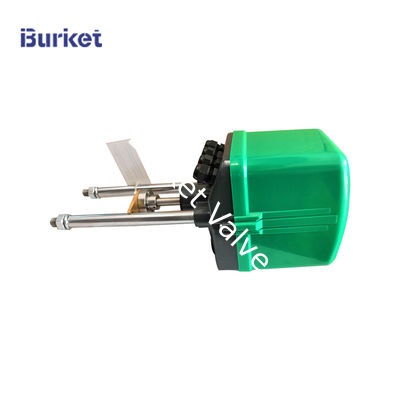

Offered as standard in the trim with Cast Iron Body, Stainless Steel Trim and the Spring-Loaded PTFE V-Ring unit complete with electric actuator with integrated positioner unit. Options available upon request include different trim materials, parabolic plugs with PTFE seats, miniature Kvs values, increased tightness on seats i.e. Class IV leakage rate.
If you are not sure of the size, you require for your process please do not hesitate to get in contact with our Technical Sales team who will be able to size the correct valve for your process.
|Body type:||straight through casting globe type|
|Spool type:||multi-layer choke spool|
|Nominal size:||DN20~200 NPS 3/4 inch~ 8 inch|
|Nominal pressure:||PN160 ~ 420 CLASS 900LB ~2500LB|
|Connection: flange:||flange: FF,RF,MF,RTJ|
|Bonnet type:||standard type(-5℃~230℃),
Radiator type: (-45℃~higher than 230℃ occasion),
Low temperature extended type(-196℃~ -45℃)
|Packing:||V type PFTE packing, flex. graphite packing, etc.|
|Gasket:||Metal graphite packing|
|Actuator:||pneumatic: multi-spring diaphragm actuator, piston type actuator.
electric: 3810L series smart actuator, PSL series actuator.
Green color, acrylic acid polyurthene ceramic paint.
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
