Payment & Shipping Terms:
|Nominal Pressure:||1.6Mpa||Temperature Range:||-50~-250C|
|Connection Method:||Flange||Actuating Modes:||Pneumatic.manual(lock Available)|
|Materials:||SUS316, ，304||Accessories:||Locator, .solenoid Valve Limit Switch|
|Applicable Mediums:||Water, Steam, Gas，oil||Stuffing:||PTFE+Flexible Graphite|

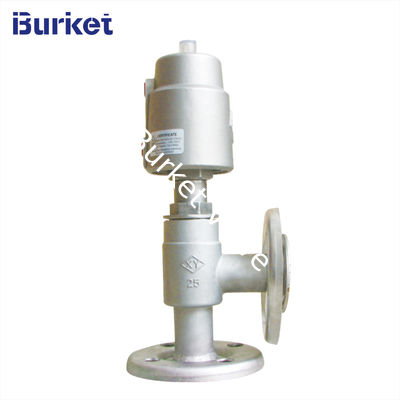

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
Fluid Pressure : Max×1.6MPa(232psi)
Control Fluid:Neutral gas,Air
Applicable Fluid:Water,Alcohol,Oil,Dye,Steam,Neutral gas or liquid,Organic solvent,Acid and lye
Control Type:Normally closed,Normally open,Double acting
Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp
Main Materials :
Actuator Material:CF8 (SS304)
Beer& Drink Filling Machinery
Textile printing& Dyeing
Pharmacy& Medical Equipment
1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
4.The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.
|Product Name||Angle Valve|
|Applicable Medium||Water, Gas, Oil, etc|
|Working Pressure||1.6 MPa|
|Valve Stem||304,316, 2Cr13,etc|
|Seal Material||PTFE+Flexible Graphite|
|Packing Details||Usually Bubble Pack For Each Valve Within Carton Box Or Plywood Case, Or Special Packaging Upon Customer Requirements|
Q: What's your business scope?
A: Our business scope is pneumatic angle seat valves , pneumatic ball valves, etc.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information, then we can give you an estimated price is for reference only. We can customize if need.
Q: How much is our minimum order quantity?
A: Our minimum quantity is 1 Piece.
Q: What is your terms of delivery?
A: FOB/CNF/CIF, Customers' Request, port includes NINGBO/SHANGHAI, Customers' Request.
Q: What is your Packing details?
A:Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Q: What's your delivery date?
A: It depends on the quantity of orders. Delivery date is 7-30 days. If you need emergency products, we can speed up the production of the first arrangement.
Contact Person: Mr. Hanson
