XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve

I'm Online Chat Now

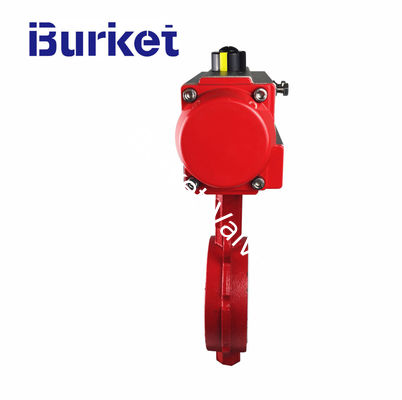

XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve

China XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier
XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve supplier

Large Image :  XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve

Product Details:

Place of Origin: China
Brand Name: XinYi
Model Number: DN50-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD83-610/SET
Packaging Details: Wooden Box
Delivery Time: Within 1-3 days after receiving your payment
Payment Terms: T/T
Supply Ability: 10000/SET/YEAR
Contact Now
Detailed Product Description
Nominal Pressure: 1.6Mpa Operating Pressure: 0.3-0.4Mpa
Temperature Range: -50~-200C Connection Method: Flange
Actuating Modes: Electric.pneumatic.manual(lock Available) Valve Bady Materials: Casting Iron Stainless Steel
Valve Plate: SUS316,304,WCB Rubber: EPDM FPM PTFE Lined
Accessories: Locator, .solenoid Valve Limit Switch Applicable Mediums: Water, Steam, Gas
Structure: Butteryfly Applicable Industries: Dyeing,pettrochmical,food,drinks,water Treatment,air-conditioner,pharmacy,paper-making

XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve



What is the Details of our butterfly Valve?



Technical parameters

Size Range 2"-12"(DN50-DN300)
Pressure PN10/PN16/PN25 ,ANSI150, BS10 TABLE D/E,JIS 10K,16K
Operating Electric,Pneumatic, Manual
Connection Wafer,Flange
Applicable medium Water/Gas/Oil/Powder
Disc Type With-Pin,One Stem no-Pin,Double Stem no-pin



Valve Components

Body Material SS304, SS316, Ductile Iron, WCB, Aluminium Alloy
Seat Material EPDM, PTFE, VITON, FPM



Disc Material

SS304, SS316, Hastelloy, Aluminium Bronze

Spherical iron covered ceramics

Ductile Iron covered with Nylon , Ductile Iron covered with Nickel, Ductile iron vulcanized rubber





What is the Connection Standard of our butterfly Valve?


Adoptive Standards

1.Valve Design: API 609, MSS SP-67

2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

3.Pressure Test: API 598

4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16

5.Top Flange: ISO5211



What is Feature of our butterfly Valve?



Features

1.vertical center line disc

2.Anti-Blow Out Stem

3.Bi-Directional

4.Fire safe Design

5.Low Friction Body Seat

6.Zero Leakage

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.



What is Application of our butterfly valve?

Application

1.Water Treatment Plant 2.Breweries

3.Drilling Rigs 4. Heating & Air Conditioning

5.Paper Industry 6.Chemical Industry

7.Gas Plant 8.Pneumatic Conveyors

9.Sugar Industry 10.Waste Effluent Treatment Plant

11.Cooling Water Circulation 12.Compressed Air

Product Overviews

XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve

Pneumatic Actuator

.jpg

SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close

.jpg

DOUBLE ACTING ACTUATOR
Air to Open, Air to Close

Pneumatic type
Single or double action
Actuator pressure
0.3-0.4Mpa
Fluid
Air
Standard
ISO 5211


Workshop

XYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve

XYDF50 Flange 2'' Pneumatic Actuator Butterfly ValveXYDF50 Flange 2'' Pneumatic Actuator Butterfly ValveXYDF50 Flange 2'' Pneumatic Actuator Butterfly Valve


FAQ



Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.



Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.



Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.



Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.



Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
