DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

I'm Online Chat Now

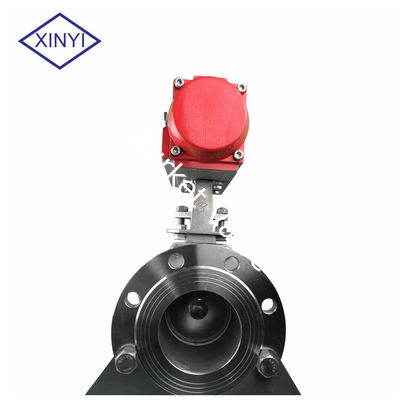

DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

China DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier
DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve supplier

Large Image :  DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

Product Details:

Place of Origin: China
Brand Name: XinYi
Model Number: DN15-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD60-955/SET
Packaging Details: Wooden Box
Delivery Time: Within 1-3 days after receiving your payment
Payment Terms: T/T
Supply Ability: 10000/SET/YEAR
Contact Now
Detailed Product Description
Nominal Pressure: 1.6Mpa Temperature Range: -50~-250C
Connection Method: Flange Actuating Modes: Electric.pneumatic.manual(lock Available)
Materials: SUS316, ,304 Accessories: Locator, .solenoid Valve Limit Switch
Applicable Mediums: Water, Steam, Gas Structure: Ball

Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

The pneumatic V control ball valve is used to adjust the parameters of pressure, flow, temperature and liquid level by using the DN series actuator. The valve core is opened with the V type incision, and the shear force is generated by the relative rotation of the hard seal valve group. The fiber can be cut off to prevent the death of the card. It has the characteristics of large circulation capacity, high adjustment precision, large adjustable ratio, good sealing, and important light and so on. It is suitable for most occasions with small caliber, corner type and three way connection. It is the best product of too imported products, especially for mud and fiber medium, which has been regulated by small solid suspension medium of aviation oil. It is widely used in the automation control system of paper making, sugar, oil, chemical, liquid crystal, air conditioning, fire protection and water supply and drainage.


Product Overviews

DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

Pneumatic Actuator

.jpg

SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close

.jpg

DOUBLE ACTING ACTUATOR
Air to Open, Air to Close

Product Name Ball Valve
Applicable Medium Water, Gas, Oil, etc
Working Pressure 1.6 MPa
Body WCB
Valve Stem 304,316, 2Cr13,etc
Seal Material PTFE
Working Temperature ≤250℃
Packing Details Usually Bubble Pack For Each Valve Within Carton Box Or Plywood Case, Or Special Packaging Upon Customer Requirements



DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

NO. Parts
names
QTY MATEIRAL
1 VALVE BODY 1 WCB/CF8/CF8M/CF3/CF3M
2 BALL BODY 1 CF8/CF8M+Chrome plated collaterals or supersonic spray
3 HEX BOLT 4 SS304
4 REAR COVER 1 CF8/CF8M
5 o ring 1 FLUORO
6 Regulating pad each 1 PTFE
7 BEARING 1 composite MATERIAL
8 REAR STEM 1 17-4PH/SS316
9 FRONT STEM 1 17-4PH/SS316
10 FLAP KEY 1 SS304/45#
11 BEARING 1 COMPOSITE MATERIAL
12 FILLER 1set PTFE
13 BOLT 2 SS304
14 FILLER COVER 1 CF8
15 HEX BOLT 2 SS304
16 o ring 1 Fluorine rubber
17 SEAL SEAT 1 PTFE/SS304/SS316+Hard chromium plating or supersonic spray coating
18 SEAL SEAT SRPING 1 SS316
19 SEAL SEAT COVER 1 Q235/SSS304/SS316
20 HEX BOLT 4 SS304
21 bracket1 1 SS CF8
22 CONNECTING CORE 1 SS 304
23 pneumatic actuator 1 AT/SW SERIES








Workshop

DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valveDN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve

DN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valveDN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valveDN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valveDN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valveDN15-200 Stainless steel Flanged v type ball valve adjustable pneumatic ball valve


FAQ



Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.



Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.



Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.



Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.



Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Can I have a sample order?

A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
