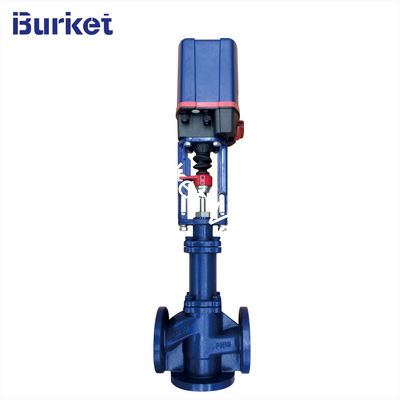

ARI Germany Electric Heat conducting oil Control Valve For Setting machine PN16
The body uses iron coated sand casting process compared with the traditional technology, there is no swelling phenomenon, body wall thickness, no pores, trachoma material of high density, more exquisite appearance The valve body and stainless steel valve port in the casting process once molding, the valve port will not have deformation phenomenon, long time high temperature use will not exist outside the valve leakage phenomenon, to ensure that the valve port factory pressure test 0 leakage. This foundry technology has obtained national patent in our company. The sealing ring is made of PTFE+ carbon fiber material, which has better wear resistance The paint paint line and drying equipment make the paint adhesion stronger, the anti-corrosion effect is better, the valve body gloss has been significantly improved.
- Flanged Connection
- Cast Iron Body & Stainless Steel Trim
- Spring Loaded PTFE V-Ring Unit
- Electric Actuator (90-264V AC 47-63Hz), 0-10V or 4-20mA Input
- Up to -10 to +220°C Temperature Rated
- DN15 to DN100, Kvs from 1 to 100
- 50:1 Rangeability
||straight through casting globe type
||multi-layer choke spool
||DN20~200 NPS 3/4 inch~ 8 inch
||PN160 ~ 420 CLASS 900LB ~2500LB
Radiator type: (-45℃~higher than 230℃ occasion),
Low temperature extended type(-196℃~ -45℃)
||V type PFTE packing, flex. graphite packing, etc.
||Metal graphite packing
||pneumatic: multi-spring diaphragm actuator, piston type actuator.
electric: 3810L series smart actuator, PSL series actuator.
Green color, acrylic acid polyurthene ceramic paint.
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
